Tripod for access in confined spaces

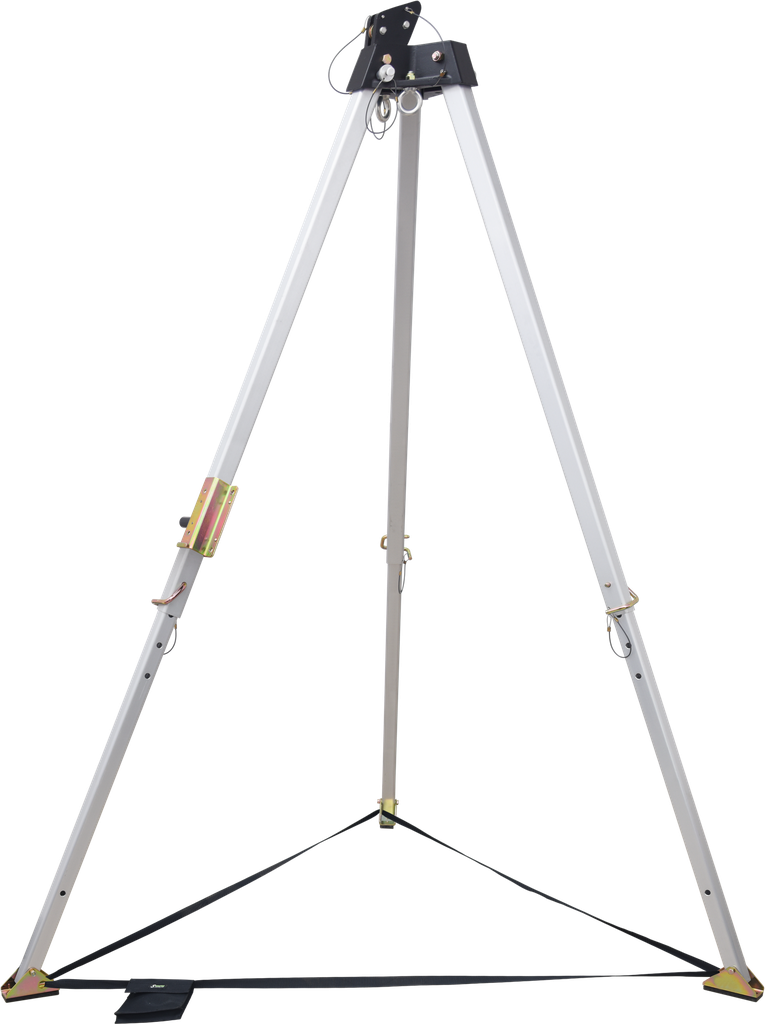

Adjustable Tripod for Confined Space Access (Available in 7 ft. or 10 ft. Models)

This adjustable tripod is designed for safe and efficient access in confined spaces. Available in two models—7 ft. or 10 ft.—it offers robust performance, flexibility, and compliance with international safety standards.

Adjustable Height:

• 7 ft. Model: 1.15 m to 2.15 m
• 10 ft. Model: 1.90 m to 2.90 m

Wheelbase:

• 7 ft. Model: 1.08 m to 1.62 m
• 10 ft. Model: 1.52 m to 2.05 m

Weight:

• 7 ft. Model: 14.3 kg
• 10 ft. Model: 22.35 kg

Maximum Load Capacity:

• 500 kg under the head
• 250 kg on the leg

Features :

           Pulleys:

• 7 ft. Model: Two mounted pulleys at the head for passing cables.
• 10 ft. Model: Two double head-mounted pulleys for managing winch cables and retractable fall arresters with integrated rescue winch.
• Attachment Points: Two auxiliary eye bolts as secure attachment points.
• Materials: Aluminum alloy cast head and legs; steel support-shoes with rubber soles for enhanced friction and stability.
• Strength of anchorage point > 12 kN.
• Each tripod comes with a dedicated tripod bag for easy transportation and storage.

Compatibility:

• 7 ft. Model: Built-in fixture for attaching winches (FA 60 003 20 / FA 60 003 30 / FA 60 023 20 / FA 60 023 20R).
• 10 ft. Model: Designed for use with universal adaptation plates (FA 60 101 02 and FA 60 101 01) for attaching winches and retractable fall arresters with integrated rescue winch (FA 20 401 10/S, FA 20 401 20/R/S, FA 20 401 30/S).
• Compliance: Both models conform to EN795:2012 type B, ATEX Directive 2014/34/EU, Machinery Directive, and EN 1808 standards.

This tripod adapts to your needs with its choice of sizes and advanced features, making it an essential tool for confined space access and rescue operations.
