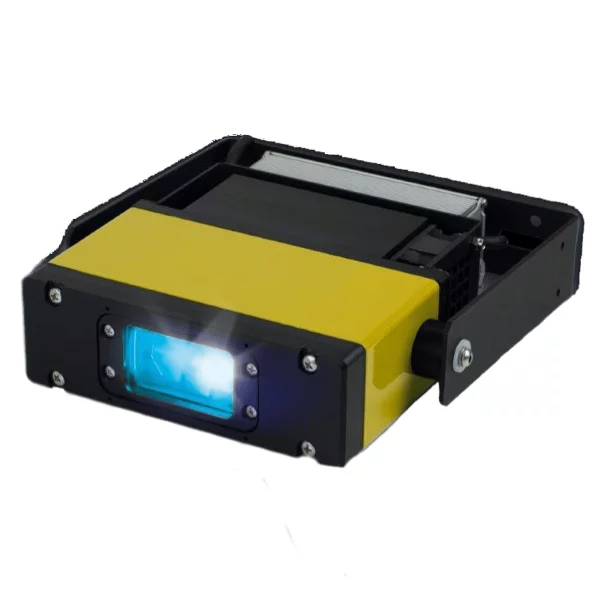

The SUPER HP EVO LED projector is an industrial lamp designed for the safety lighting of overhead cranes installed at high altitudes and in bright environments. It is ideal for enhancing the safety of the crane operator as well as surrounding workers, especially in noisy environments.
The SUPER HP EVO LED projector is equipped with high-efficiency LEDs and a concentrating optical system, which ensures a highly visible beam on the ground.
It also integrates a fan for better heat dissipation. The materials used, such as anodized aluminum and stainless steel, give the SUPER HP EVO LED projector great durability and superior quality.
|
Safety Bar Super HP EVO Blue |
Safety Bar Super HP EVO Red |
| LED Lamp Color |
Blue |
Red |
| Power Supply |
90-305 V AC / 50-60 Hz |
90-305 V AC / 50-60 Hz |
| Maximum Absorbed Power |
98 W |
80 W |
| Source |
No. 4 HIGH POWER BLUE LED |
No. 4 HIGH POWER RED LED |
| Projected Form |
Bar |
Bar |
| Dominant Wavelength |
460 nm (Blue) |
620 nm (Red) |
| Operating Temperature |
-40°C to +60°C |
-40°C to +60°C |
| Control |
On/Off |
On/Off |
| Materials |
Anodized aluminum and PVC (structure), Painted steel (bracket), Stainless steel (screws and cable glands), Glass (lenses), Silicone (gaskets) |
Anodized aluminum and PVC (structure), Painted steel (bracket), Stainless steel (screws and cable glands), Glass (lenses), Silicone (gaskets) |
| IP Protection Rating |
IP65 |
IP65 |
| Impact Resistance Grade IK |
IK08 |
IK08 |
| Photobiological Risk Class |
RG1 (for distances greater than 10.61 m; for shorter distances, RG2) |
RG1 |
| Weight |
4.2 Kg |
4.2 Kg |
| Packaging Dimensions |
300 x 285 x 230 mm |
300 x 285 x 230 mm |
| Lamp Dimensions |
260 x 65 x 240 mm |
260 x 65 x 240 mm |
-
Capacity
-
Maximum Absorbed Power
-
Colour
This combination does not exist.
730.00 €
730.0
EUR
730.00 €
730.00 €
Price on request
