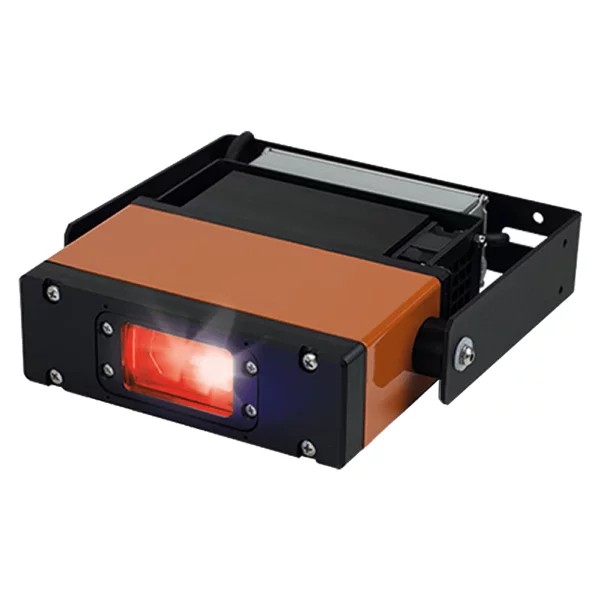

The H.P. EVO LED projector is an industrial lighting solution specifically designed for crane safety. Perfect for enhancing the safety of crane operators and workers in surrounding areas, this projector is especially suited for noisy environments where visual signals are essential. When installed on the crane, it projects a blue or red light beam on the ground, visually warning of the crane's arrival while clearly marking the front and rear maneuvering zones.
Powered by 230 Vac, the H.P. EVO LED projector uses high-performance LEDs and concentrating optical lenses for maximum efficiency. It is also equipped with an integrated fan to ensure optimal heat dissipation.
Made from durable materials such as anodized aluminum and stainless steel, this projector guarantees exceptional longevity and reliability, making the H.P. EVO LED projector a top-quality choice for enhanced safety on industrial sites.
Technical Information
| SAFETY BAR SUPER HP BLUE | SAFETY BAR SUPER HP RED |
| LED Colour Lamp | Blue | Red |
| Power Supply | 90-305Vac / 50-60Hz | 90-305Vac / 50-60Hz |
| Maximum Power Input | 98W | 80W |
| Source | n°4 HIGH POWER BLUE LED | n°4 HIGH POWER RED LED |
| Projected Figure | Light Beam | Light Beam |
| Dominant Wavelength | 460nm (Blue) | 620nm (Red) |
| Operating Temperature | From -40°C to +60°C | From -40°C to +60°C |
| Control | On/Off | On/Off |
| Materials | Extruded anodized aluminum (structure), Painted steel (bracket), Stainless steel (screws and cable glands), Glass (lenses), EPDM (gaskets), PVC (lens closure). | Extruded anodized aluminum (structure), Painted steel (bracket), Stainless steel (screws and cable glands), Glass (lenses), EPDM (gaskets), PVC (lens closure). |
| IP Protection Class | IP65 | IP65 |
| IK Protection Class | IK08 | IK08 |
| Photobiological Safety Risk Group | RG1 (for distances over 10.61m; for smaller distances, RG2) | RG1 |
| Weight | 4,2 Kg | 4,2 Kg |
| Packaging Dimensions | 300x285x230 mm | 300x285x230 mm |
| Lamp Dimension | 260x65x240 mm | 260x65x240 mm |
-
Capacity
-
Maximum Absorbed Power
-
Colour
This combination does not exist.
587.00 €
587.0
EUR
587.00 €
587.00 €
Price on request
