Evacuation and rescue device - LIFT RES-Q KRATOS

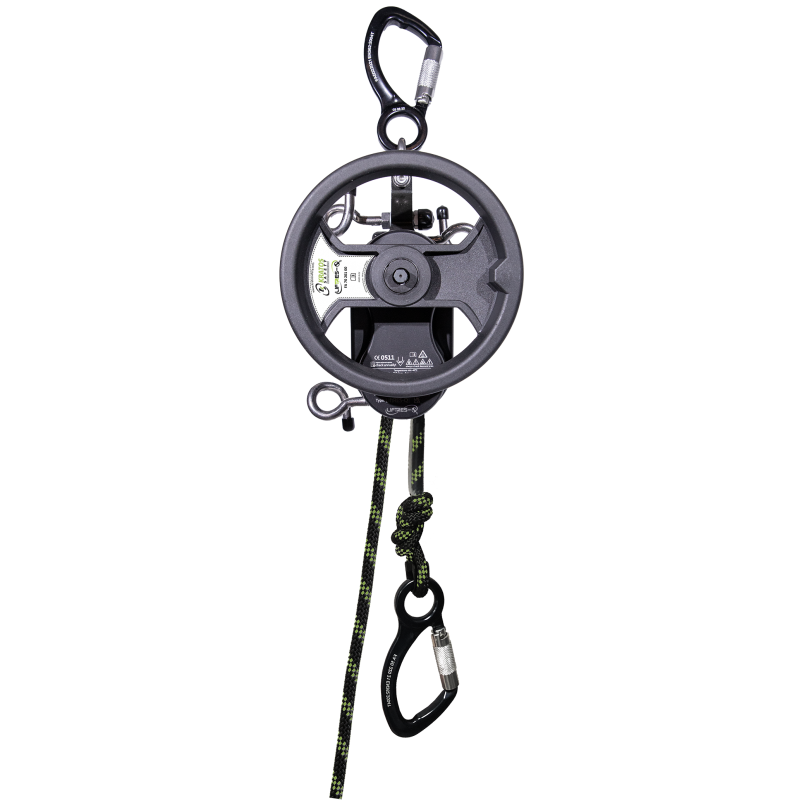

LIFTRES-Q, evacuation and rescue device, 20 m

LiftRes-Q is the perfect device for lifting and rescue operations.

Made of aluminium alloy and high-strength steel and dia. 9.6 mm semi static kernmantle rope assembled with the device.

Rope ends with double figure of 8 knots for connection with karabiner. Provided with 2 hooks ref. FA 50 220 21.

Controlled descent speed: 1 m to 1.50 m/sec (depending on the weight), up to 225 kg.

Maximum descent height: 500 m.

Maximum lifting height: 500 m.

Usable with electric screwdriver for high ascents.

Brake system: Automatic and redundant.

Maximum no. of users: 2 users - 225 kg.

Inspection: Once a year or every 6000 m of rope.

Available in 2 lengths: 20 m (FA 70 201 20), 40 m (FA 70 201 40).

For specific lengths, you need to associate the following references:

• FA 70 201 00: device only.
• FA 70 109 99: Kernmantle rope per meter.
• FA 70 109 98: Required length of rope with double “figure of 8” knots and automatic locking hook.

Compliance: EN 341:2011-1A, EN 1496:2017 B, EN 12841:2006 Type C.
